LogTemp - program (WinXP).
 Main window

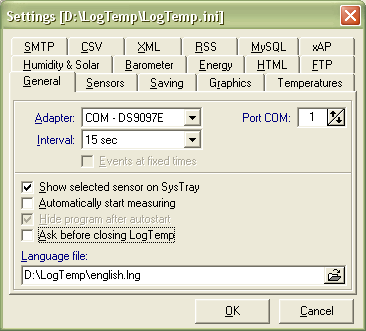

Program setup


Temperature shown in SysTray (21°C): SysTray

horizontal rule

LogTemp program can be used for viewing and saving of several 1-Wire temperature sensors measurements. The interval of the measurements can be adjusted.

Measurements will be shown in day/week/month graphics. These pictures can be saved automatically using defined intervals. Last measurement values can also be saved to html-file. MySQL database could also be used for saving the measurements.

LogTemp program can be localized to other languages very easily. All program captions, messages etc. are read from the external lng-file. Default installation installs english.lng and finnish.lng files to the program directory. Other translations can be done by using the english.lng as a reference file.

If you want to log temperatures with Windows native service, see DS18x Service.

More LogTemp pictures:

bulletSensor properties
bulletMessages
bulletSetting for saving
bulletSetting for graphics
bulletHumidity sensor setup
bulletFTP setup
bulletSMTP Server setup
bulletDay picture
bulletWeek picture
bulletMonth picture
bulletDaily Energy Consumption
bullethtml-file
bulletxAP settings

LogTemp requirements

bulletOperating system Windows 95 / 98 / ME / NT / 2000 / XP
bulletNo XP64 or Vista 64 support
bulletMicroLAN adapter connected to the computer
bulletTMEX drivers, i.e. TMEX runtime environment or new 1-wire drivers
bulletSupported 1-wire sensors

1-wire sensors / chips supported by LogTemp

bulletDS1820 temperature sensors
bulletMeasuring -50°C - +70°C
bulletResolution 0,1°C, accuracy in practice ±0,5°C
bulletBetter accuracy if calibration is used
bulletDS18B20, DS1822 and DS1920 temperature sensors
bulletDS2438
bulletRelative humidity measurements
bulletDS2438 + HIH-3610/4000/4010. Example here
bullet Hobby Boards model
bulletSolar Radiation measurements
bulletDS2438 + photodiode. Example here
bullet Hobby Boards model
bulletBarometer
bulletDS2438 + MPX4115A
bullet Hobby Boards model (B1-R1-A)
bulletVoltage
bulletVAD measurements (0 - 10 V)
bulletDS2423 Counter
bulletLightning and General Purpose counters
bullet Hobby Boards Lightning Detector
bullet Hobby Boards Dual Counter
bulletRain gauge
bulletWind Speed
bulletEnergy Consumption (kWh) with graphs
bulletNo picture generated from the other values (yet)
bulletDS2405 and DS2406 Switch
bulletAlarm event can e.g. control relay board
bulletDS2406 has one (TO92 package) or two (TSOC package) channels to be used and in general it is more reliable than DS2405
bulletDS2409
bulletDS2409 based hubs based are supported
bullet Hobby Boards model
bulletDS2760
bulletTemperature measurements using type E, J, K, R, S or T thermocouples
bulletUV Index Meter
bulletHobby Boards special UV Index Meter with 1-Wire interface
bulletNot usable below +10° C temperatures

horizontal rule

Download

bulletThe latest LogTemp setup Setup.exe  (950 kt).
bulletTMEX drivers: iButton-TMEX and Developers Tool Kit
bulletOther LogTemp language files here

Version history

bulletVersion 2.24.0.92  04 Oct 2009
bulletAdded support for UV Index Meter by Hobby-Boards, also graphs
bulletAdded own temperature correction for HIH-4010 humidity sensor
bulletCorrected XML settings (disabled)
bulletMySQL data saved with two decimals instead of one decimal
bulletCounter readings enhanced when reading both pages from the same chip
bulletChanged sensor number in xAP messages in order to have always the same number if possible
bulletMinor adjustments
bulletEarlier version history see this
